Not much to explain. The pictures do the talking.
 |
| The Setup |
 |
| First Cut |
 |

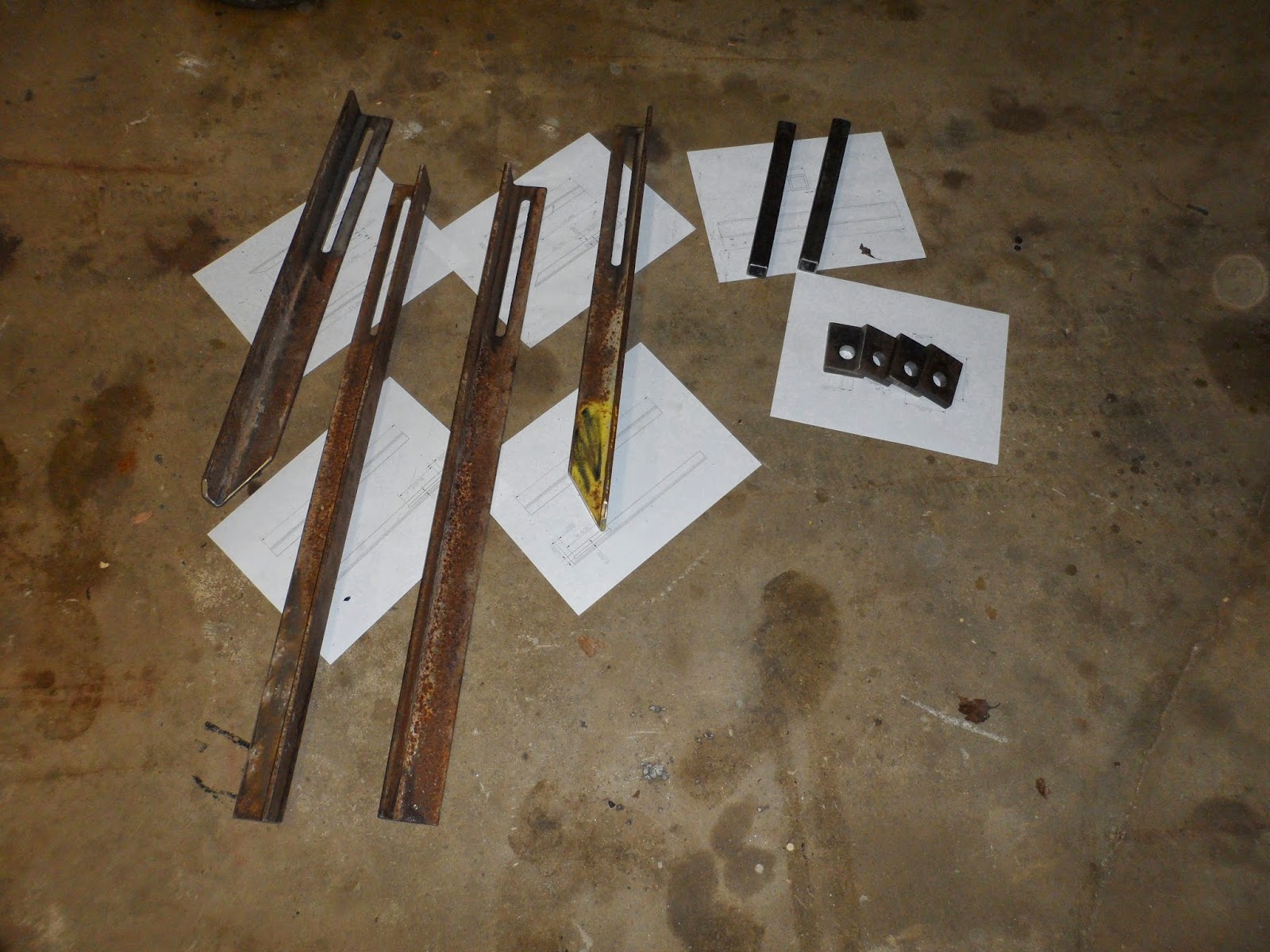

| Cut Pieces For The Frame Rails |
 |

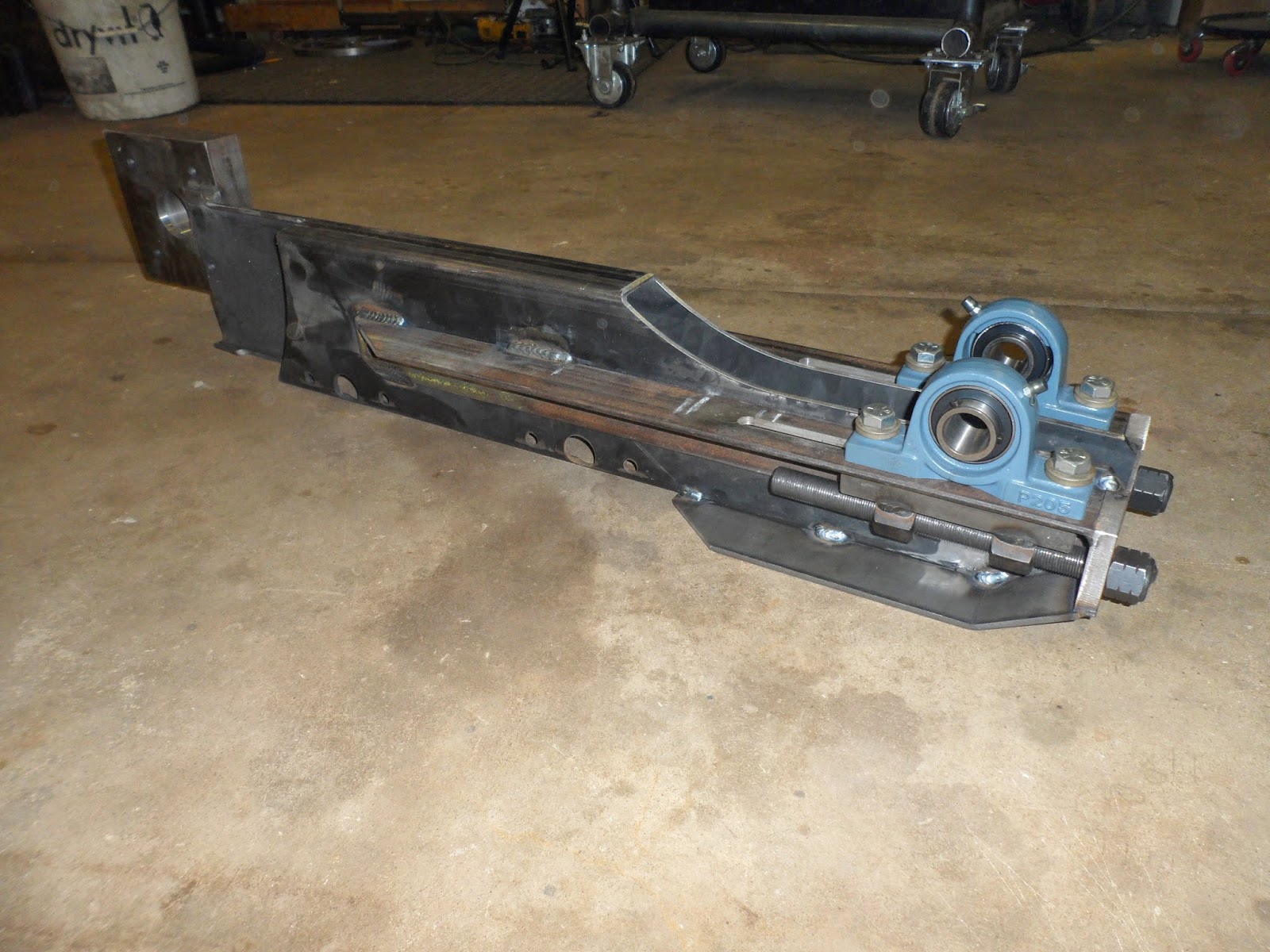

| Completed Weldment. I decided to go with fixed track tensioners. It was simpler to do. So far, I haven't had any problems with it. |
Caterpillar Twenty Two Replica Miniature Bulldozer Build (Completed) / Caterpillar 785C Replica Mining Truck Build (Pending)
Underframe Continued

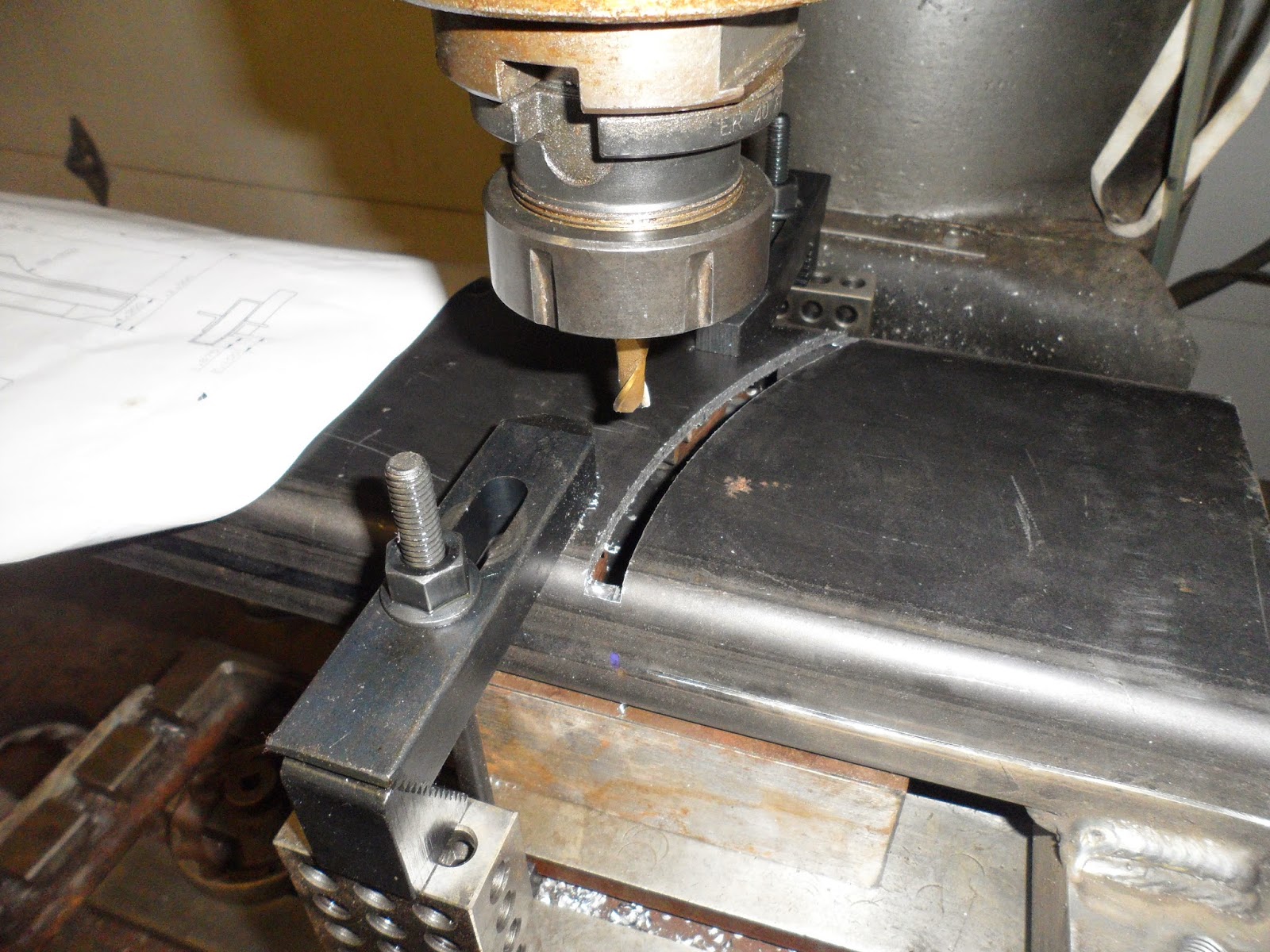

I needed to cut some arcs. So I bought an Advance Cross Slide Rotary table. I could have used a plasma cutter or angle grinder but I can't free hand cuts to save my life. And using a new tool is fun.
Not much to explain. The pictures do the talking.
I decided to make only one just in case I screwed up the design and something didn't fit.
Not much to explain. The pictures do the talking.
